1. NETWORKING IP ADDRESSING

2. TYPES OF IP ADDRESS PRIVATE IP ADDRESS PUBLIC IP ADDRESS STATIC IP ADDRESS DYNAMIC IP ADDRESS

3. PRIVATE IP ADDRESS The Internet Assigned Numbers Authority (IANA) has reserved the following three blocks of the IP address space for private internets (local networks): 10.0.0.0 - 10.255.255.255 172.16.0.0 - 172.31.255.255 192.168.0.0 - 192.168.255.255

4. PRIVATE IP ADDRESS Also, IP addresses in the range of 169.254.0.0 -169.254.255.255 are reserved for Automatic Private IP Addressing. These IP's should not be used on the Internet

5. PUBLIC IP ADDRESS The IP Address that you make known to others on the Internet is called your Public IP Address IP ADDRESS excluding private ip address range are used on internet

6. S TATIC IP ADDRESS Static IP addresses are manually assigned to a computer by an administrator A static public IP address does not change and is used primarily for hosting webpages or services on the Internet.

7. D YNAMIC IP ADDRESS A dynamic public IP address is chosen from a pool of available addresses and changes each time one connects to the Internet. Most people have a dynamic public IP address, as it is the standard type of public IP address assigned when purchasing Internet connectivity. They are used because it avoids the administrative burden of assigning specific static addresses to each device on a network.

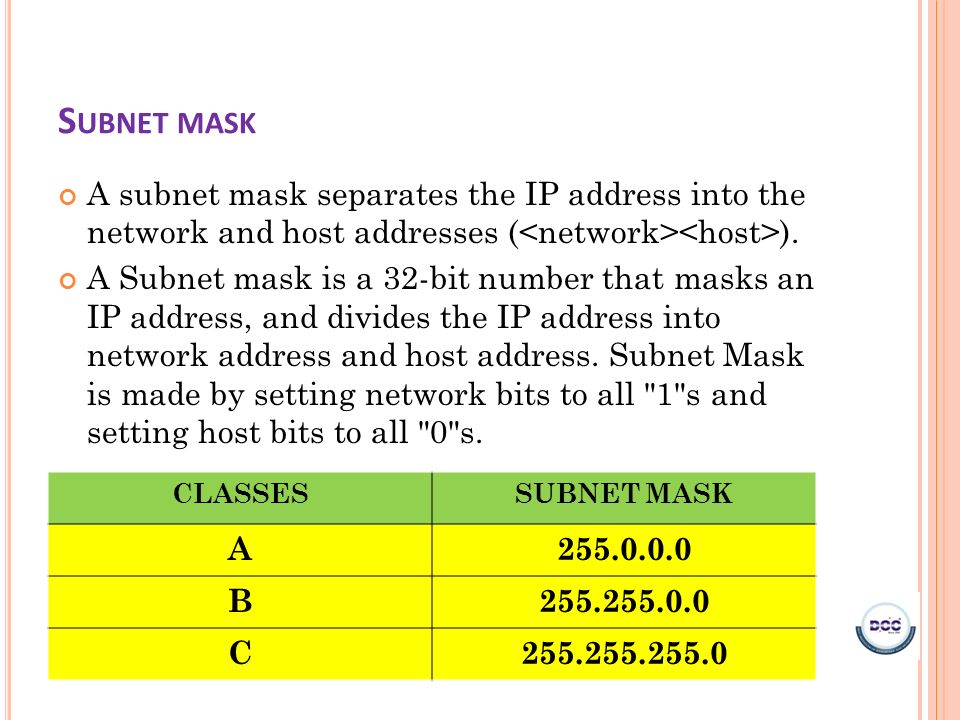

8. S UBNET MASK A subnet mask separates the IP address into the network and host addresses ( ). A Subnet mask is a 32-bit number that masks an IP address, and divides the IP address into network address and host address. Subnet Mask is made by setting network bits to all "1"s and setting host bits to all "0"s. CLASSESSUBNET MASK A255.0.0.0 B255.255.0.0 C255.255.255.0

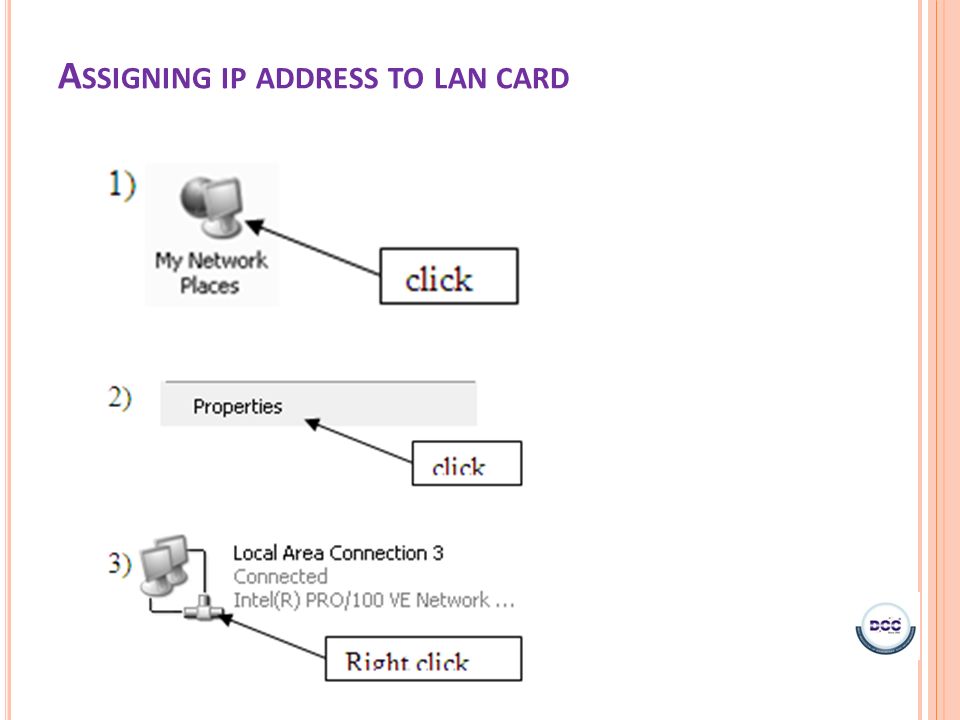

9. A SSIGNING IP ADDRESS TO LAN CARD

13. HOW TO CHECK IP ASSIGNED FROM GUI(GRAPHICS USER INTERFACE)

16. HOW TO CHECK IP ASSIGNED FROM CLI(COMMAND LINE INTERFACE)
